SYSTEM ADAPTORS FOR VALVE STEMS
Conical Drive spindle adaptors
Select from a range of different types of drive adaptors which fit directly to the system fitting on the tool or drive extensions:
| Photo | Type | To suit spindle size | To suit Model |
 | VAS 14/12 | 12-14mm | TB300SD |
 | KOS17/19-300 | 17-19mm | TB300SD |
| KOS19/22-300 | 19-22mm | TB300SD | |
| KOS24/27-300 | 24-27mm | TB300SD | |
| KOS27/32-300 | 27-32mm | TB300SD | |
| KOS27/32-900 | TB900SD | ||
| KOS32/36-300 | 32-36mm | TB300SD | |
| KOS32/36-900 | TB900SD | ||
 | KOS40/50-300 | 40-50mm | TB300SD |
| KOS48/54-300 | 48-54mm | TB300SD | |
| KOS48/54-900 | TB900SD |

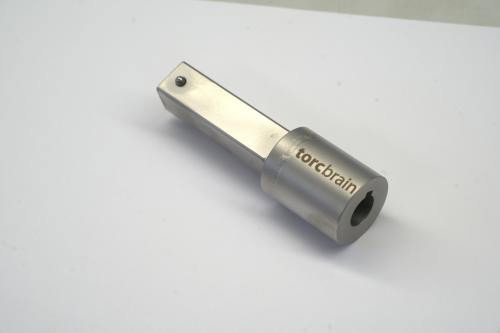

Square Drive adaptors
Square Drive Adaptors are used to convert the tool output spindle to a standard 3/4” square drive, enabling the use of standard sockets or existing tooling made to connect to your valve stems or keys.
| Photo | Type | Description | To suit Model |
 | Sys300-34M | Square Drive Adaptor 3/4" Output size To suit standard type sockets | TB300SD |
| Sys900-34M | TB900SD |
Valve Spindle Keyway Adaptors
Valve Spindle Keyway System Adaptors are used to connect the tool directly to the valve keyway spindle. They are made to order according to your requirements and fit directly to the system adaptor of the tool and/or the drive extensions.
| Photo | Type | To suit Model |
 | KW300Sys xxx | TB300SD |
| KW900Sys xxx | TB900SD |
Special, custom-made adaptors
We can design and build adaptors to suit your specific requirements. Please contact us with your requirements.
| Thin walled | Square Drive | Hydrant | Small handwheel |
 |  |  |  |
